Double-beveled and non drilled
Thickness
16-45 mm
Width
150–450 mm
Length
6000 and 6100 mm
Material
BOROX® 500HB
Bevel angle
25 degrees
- Produced from premium Nordic steel
- Flexible bolt-on edges for those who wants to drill the holes themselves.
- Sold in full lengths of 6000 or 6100 mm.
Description

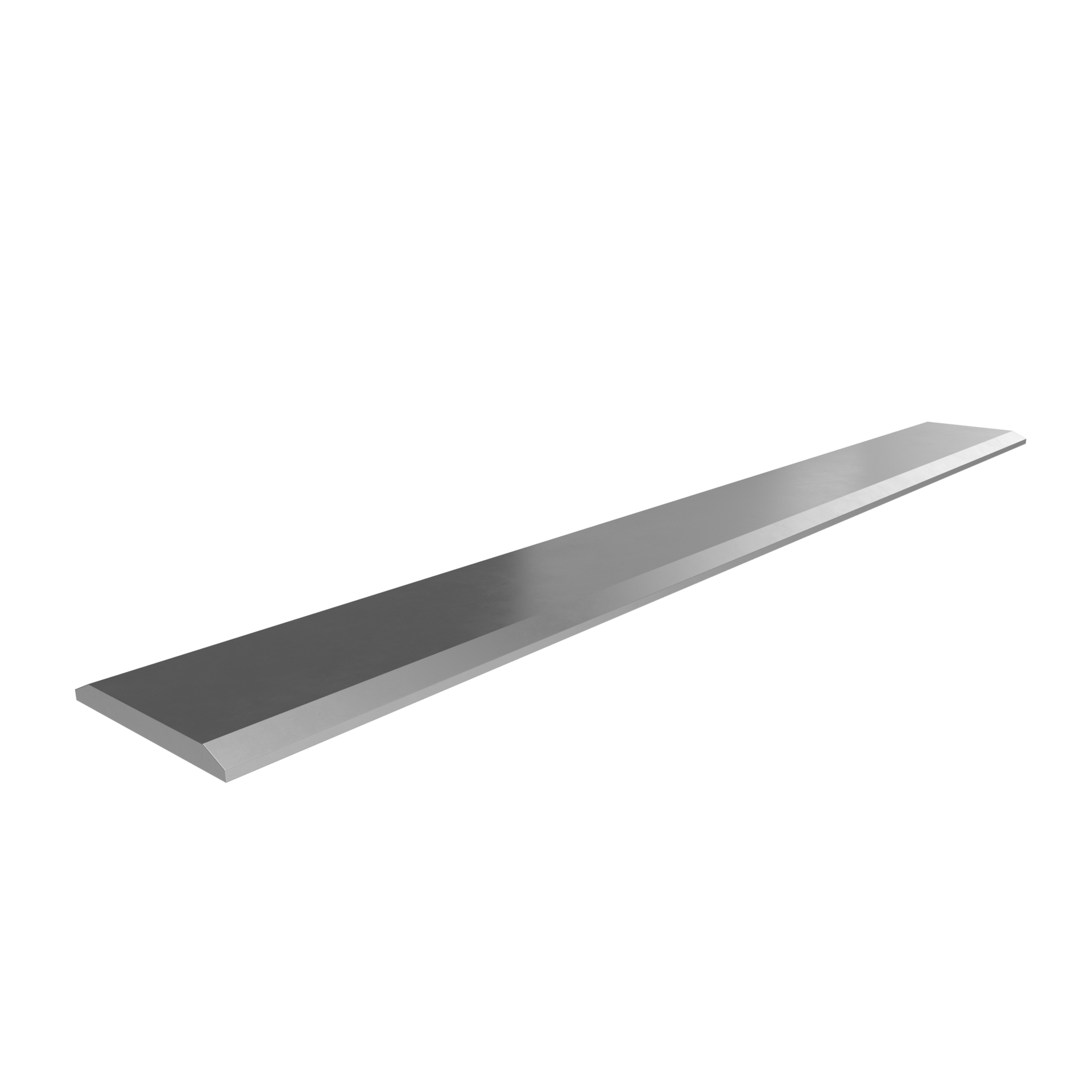

Double-beveled and non drilled bolt-on edges is a versatile product for those who want to drill the holes themselves.
They are manufactured in BOROX® 500HB, but we can also produce them in other materials if needed.
See also
Articles
|
Part number
|
Dimensions
|
|||||
| Bolt-on edges and segments | Width (mm) | Thickness (mm) | Length (mm) | |||
|
6621610
|
150
|
16
|
6100
|
|||
|
6625610
|
150
|
20
|
6100
|
|||
|
6632610
|
200
|
20
|
6100
|
|||
|
6636610
|
200
|
25
|
6100
|
|||
|
6645610
|
250
|
20
|
6100
|
|||
|
6643610
|
250
|
25
|
6100
|
|||
|
6644610
|
250
|
30
|
6100
|
|||
|
6663610
|
300
|
25
|
6100
|
|||
|
6624610
|
300
|
30
|
6100
|
|||
|
6666610
|
300
|
40
|
6100
|
|||
|
6666001
|
330
|
25
|
6100
|
|||
|
6667610
|
330
|
30
|
6100
|
|||
|
6605610
|
330
|
35
|
6100
|
|||
|
6696610
|
330
|
40
|
6100
|
|||
|
6607610
|
350
|
30
|
6100
|
|||
|
6699610
|
350
|
40
|
6100
|
|||
|
6667001
|
360
|
30
|
6100
|
|||
|
6668600
|
360
|
35
|
6000
|
|||
|
6669610
|
360
|
40
|
6100
|
|||
|
6665003
|
300
|
20
|
6100
|
|||
|
6617610
|
380
|
30
|
6100
|
|||
|
6677002
|
400
|
30
|
6100
|
|||
|
6679610
|
400
|
40
|
6100
|
|||
|
6670610
|
430
|
40
|
6100
|
|||
|
6677610
|
480
|
30
|
6100
|
|||
|
6618600
|
480
|
35
|
6000
|
|||
